Custom Laser Processing
Adaptek Systems is an industry leader in laser automation. Our team understands the many advantages of laser processing and has the expertise to deliver a wide range of custom laser processing systems.
Generally, lasers in production are involved in some form of welding, cutting or marking processes. Selecting the right wavelength, frequency, power and speed is a critical portion of an effective solution, and Adaptek Systems can meet your need. In addition to the laser process, we can include automated part loading/unloading, assembly functions, automated inspection and product testing, to name a few. Ideal applications are found in many processes including medical components, automotive parts, hermetic sealing, fabrications and many more.

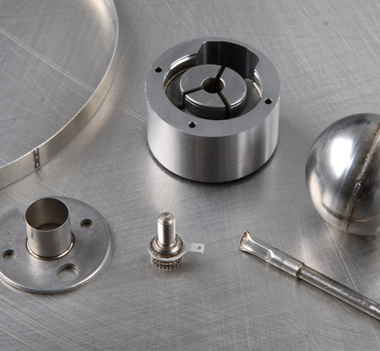

Laser Welding
Lasers are most typically used in the welding of plastics and metals. Lasers are ideal in that no additional materials are added in the process, the heat affected zone is minimized and the precision and consistency is like no other process available. Adaptek’s engineering team can review your welding application in detail and identify the critical parameters involved.
Why laser welding?
- Perfect welds each time due to process repeatability
- Well suited for plastics or metals alike
- Most likely the fastest weld times when compared to other optional methods
- Wide ranging control of fillet and penetration
- Eliminates all consumables other than the cover gas
- The ideal process for intricate parts or joints

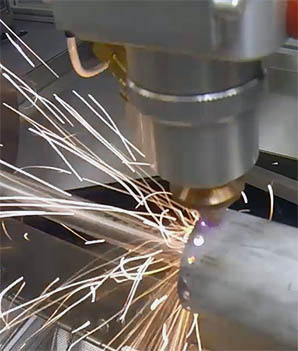

Laser Cutting, Drilling, or Trimming
Lasers are an excellent method for precision material removal, especially in thinner stock, where intricate shapes are involved or the material is difficult to cut by other means. While most applications use one or more beam delivery systems typically under 0.010" in diameter, beams can function as a micro-thin cutting blade or a drill of any diameter simply through programmable motion. Laser automation developed by Adaptek Systems can include gantry table configurations, integrated linear and rotational transfers, robotic 3D axis and much more.
Advantages of laser cutting:
- Virtually no distortion in the cutting edge area due to the absence of pressure, contact or a cutting tool
- Extremely repeatable process and precise motion to match the application
- Elimination of cutting tools and required routine maintenance
- Excellent cut edge quality

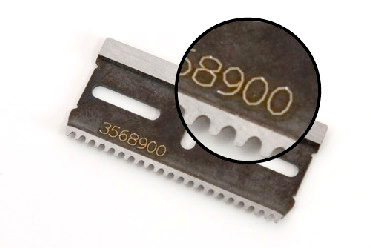

Laser Marking
Laser marking is ideal for high definition, permanent part marking. Laser marking is not an image-depositing process such as inks or labels, but actually ablates, or etches in the image or characters. Using a highly focused laser beam, typically only a few thousandths of an inch in diameter, nearly microscopic size characters can be produced at up to 300 characters per second.
Is laser marking right for you?
- Eliminates consumables such as ink or labels
- Marks on almost any surface with no preparation
- Most permanent mark available — would require removing the base material to remove the mark
- Virtually no maintenance
- Non-contact for the most delicate parts and eliminates costly part retaining fixturing
- Unmatched flexibility with programmable characters for date codes, serialization, downloaded messages or even high resolution graphics
